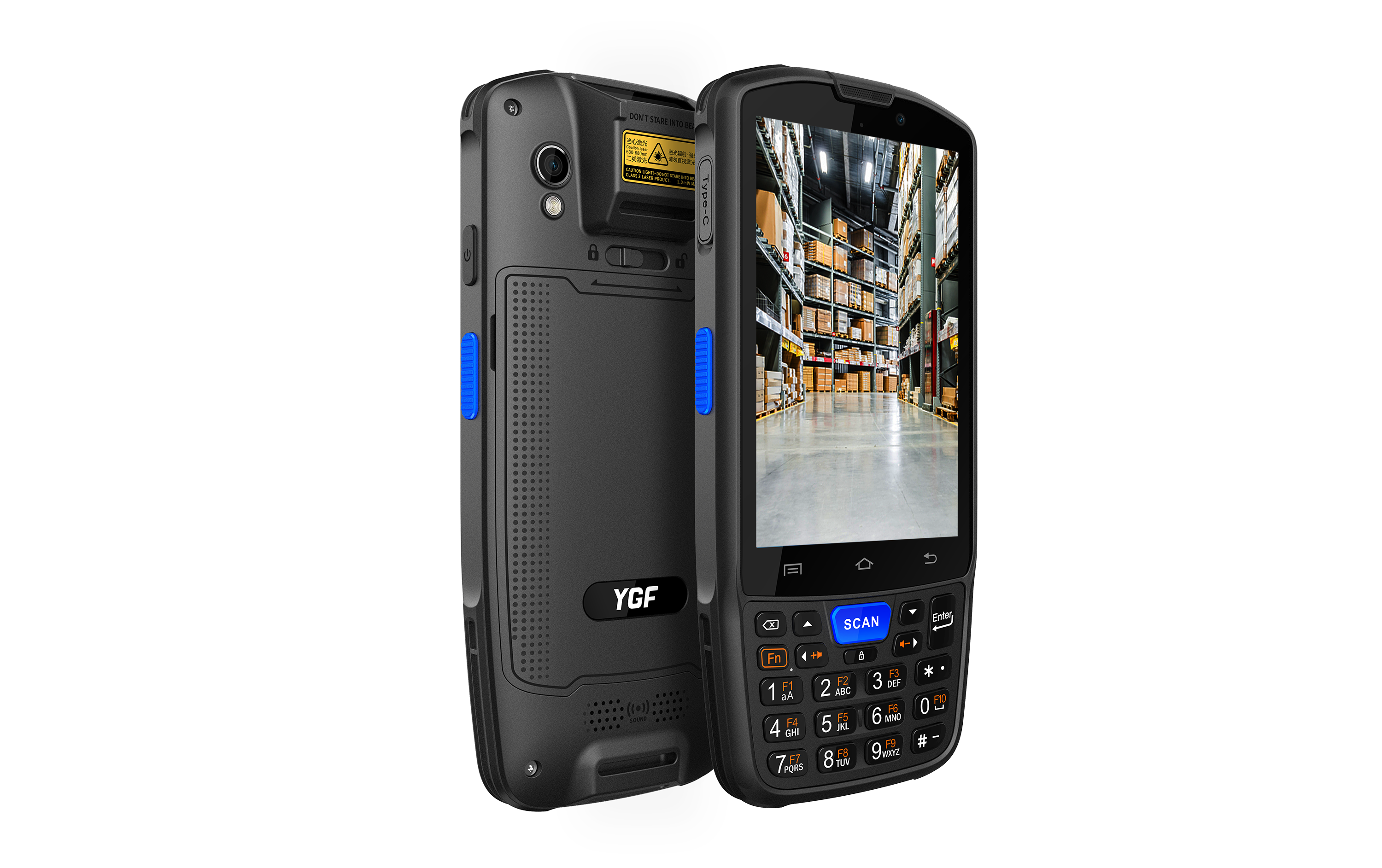

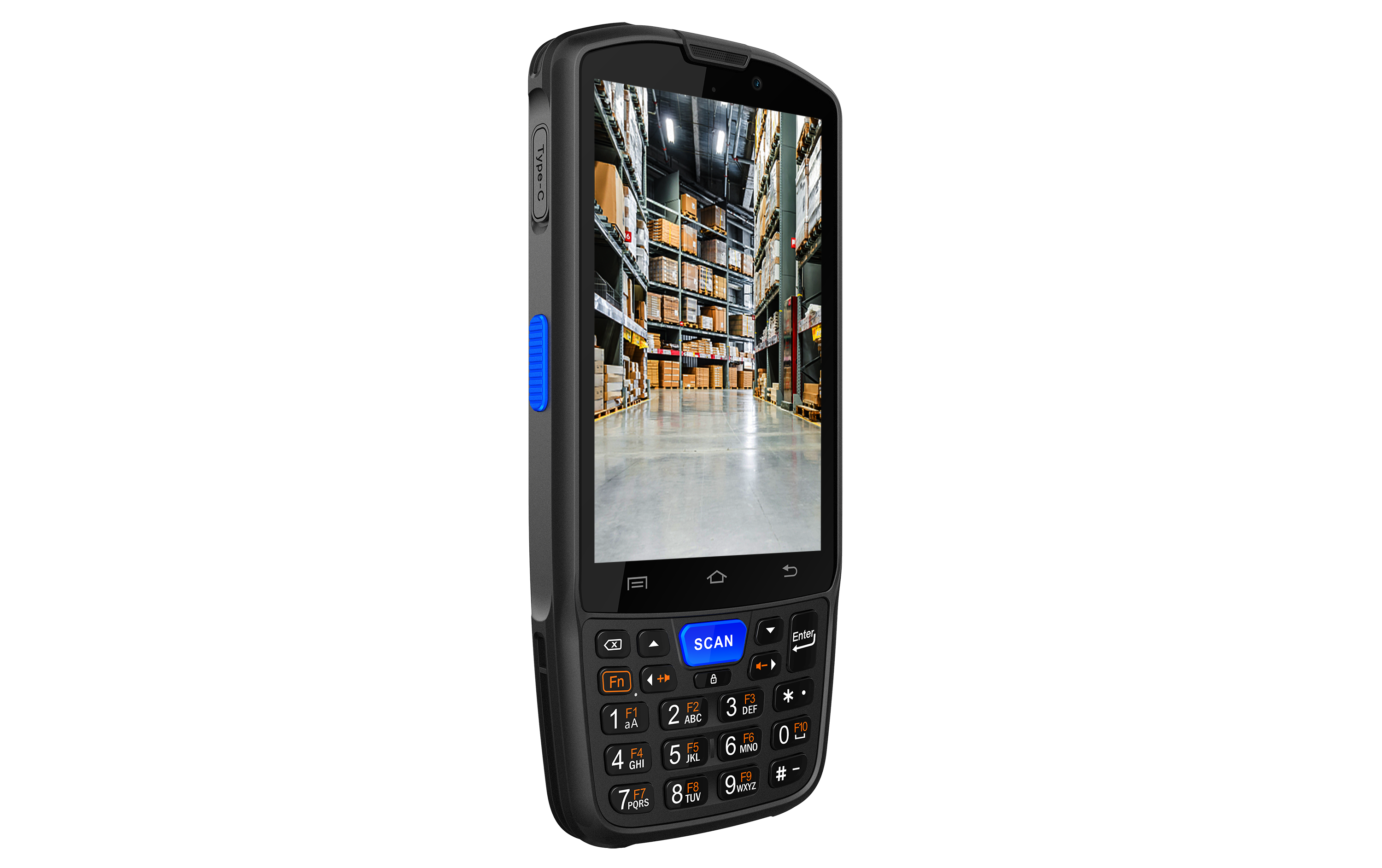

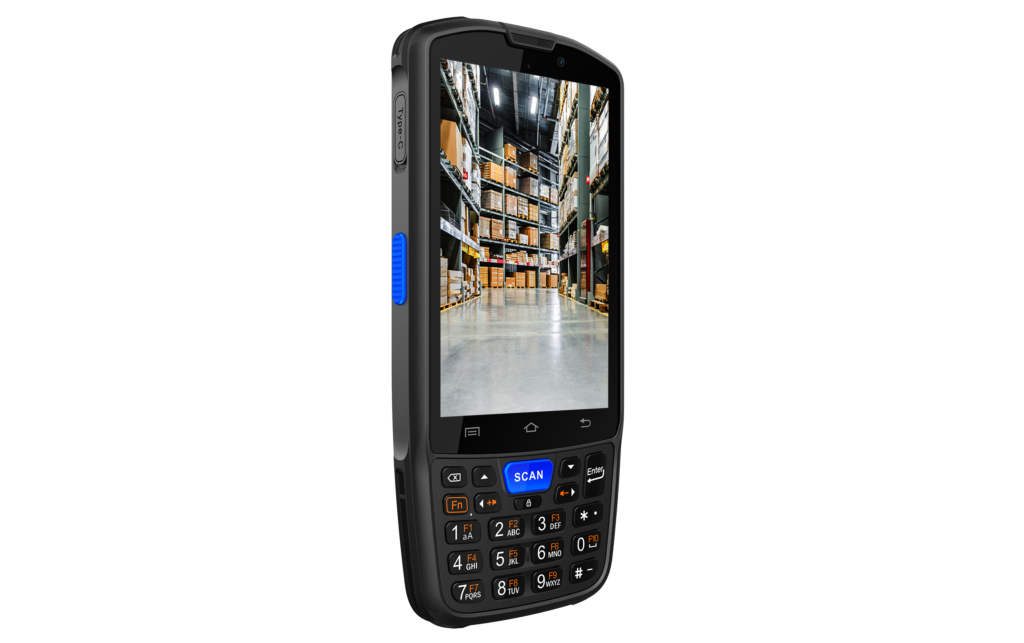

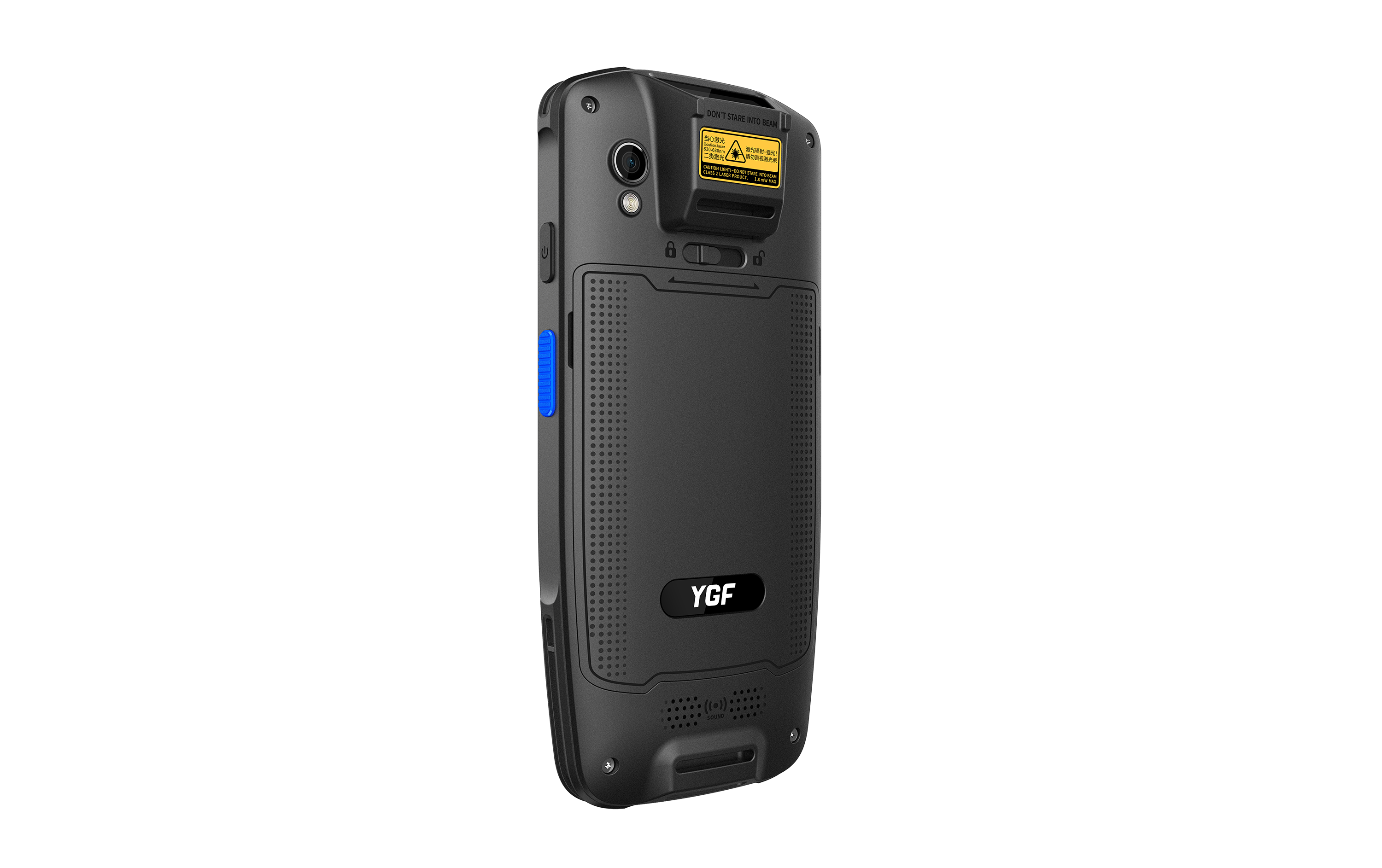

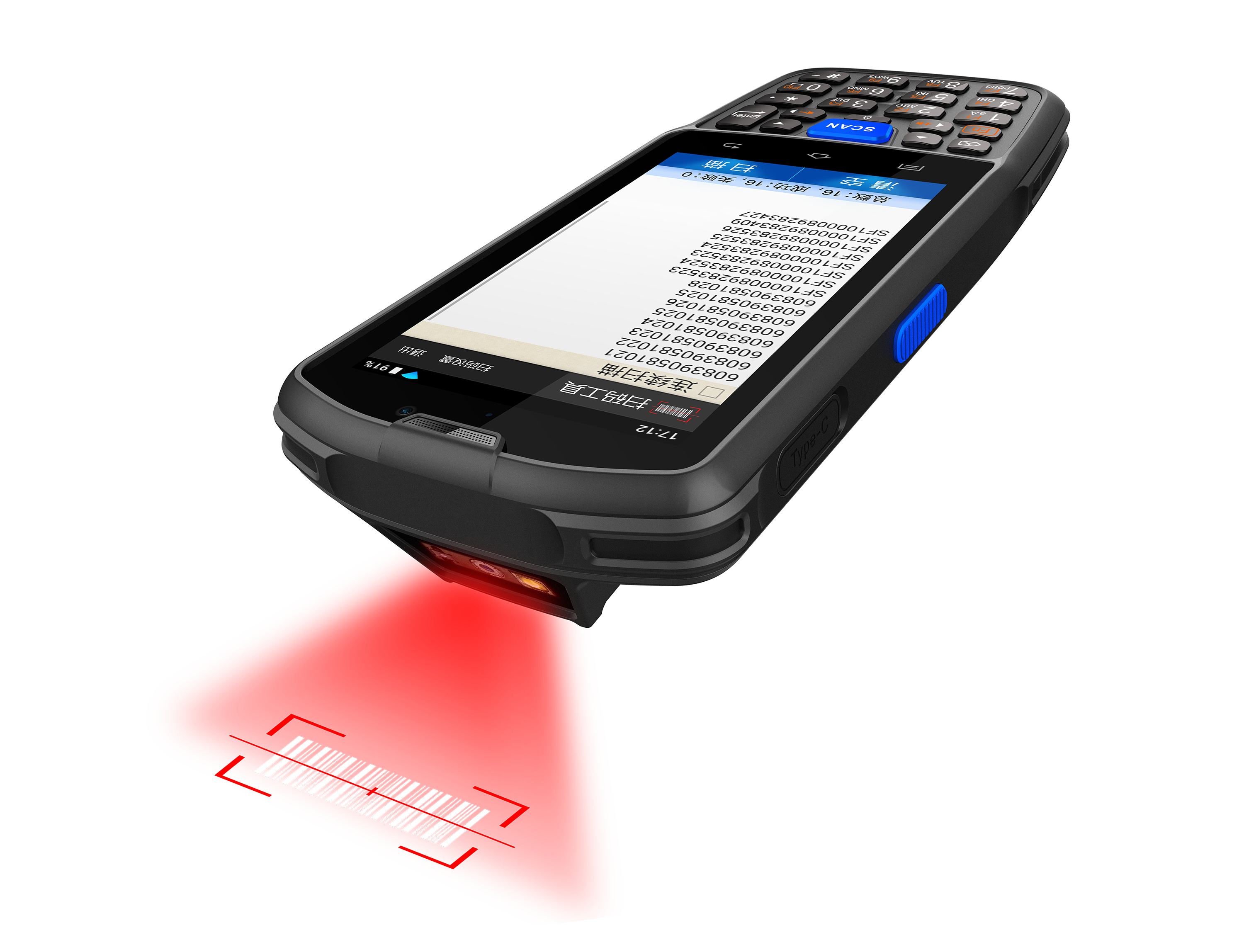

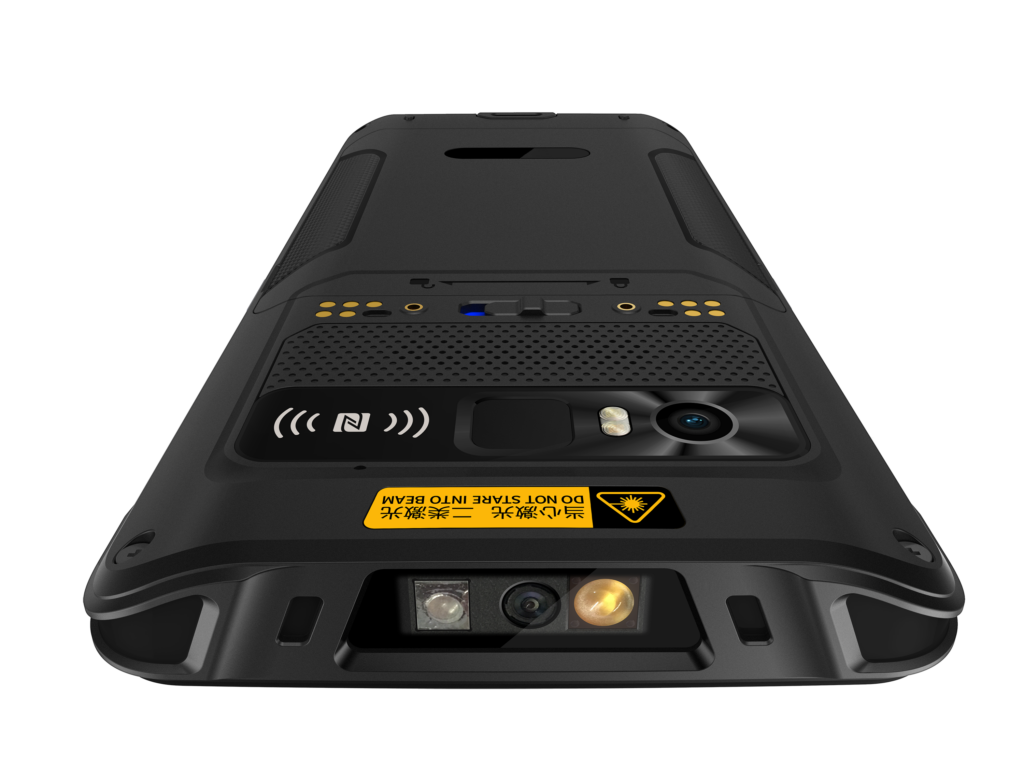

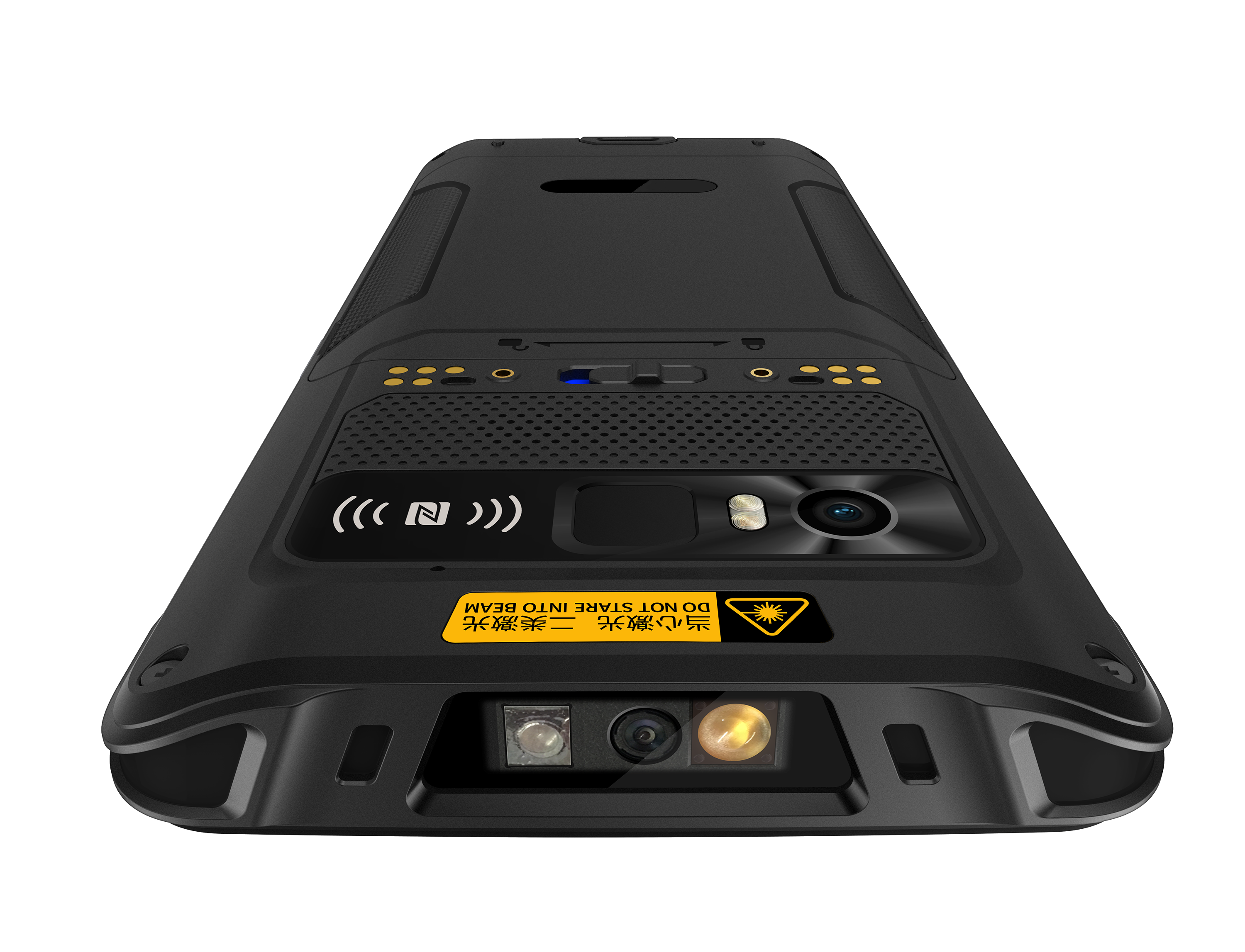

Android Handheld Terminal 4inch PDA with Keypad and 2D Barcode Scanner
Brief Description:
The V210 Portable Data Collector PDA is a compact Android handheld terminal designed for retail, warehouse, logistics, inventory management, and mobile data collection applications. It comes with a 5.5-inch IPS touchscreen, Android 10.0 system, 4G LTE communication, WiFi, Bluetooth, GPS, and optional 1D/2D barcode scanning, NFC, RFID, and UHF RFID functions. With its rugged structure, removable battery, and IP55 protection, it is suitable for daily business use in both indoor and mobile working environments.
Description
Android Handheld Terminal
Specification:
| Specification | ||
| Basic
Configuration |
CPU | MT6762, Contex-A53 Octa-cores, 2.0GHz+1.5GHz |
| OS | Android 9.0/Android 13/Android 14 GMS | |
| Memory | 4GB RAM+64GB ROM | |
| Extended Memory | Support maximum 64GB extended MicroSD (TF) card | |
| Display | 4inches IPS screen, LED backlight, 480*800 | |
| Touch Screen | 5-point capacitive touch screen | |
| Wi-Fi | IEEE 802.11/a/b/g/n/ac/k/v/r, 2.4GHz + 5GHz Dual-Frequency | |
| Bluetooth | Bluetooth V5.0 | |
| GPS | Support GPS+Glonass+AGPS+Beidou positioning | |

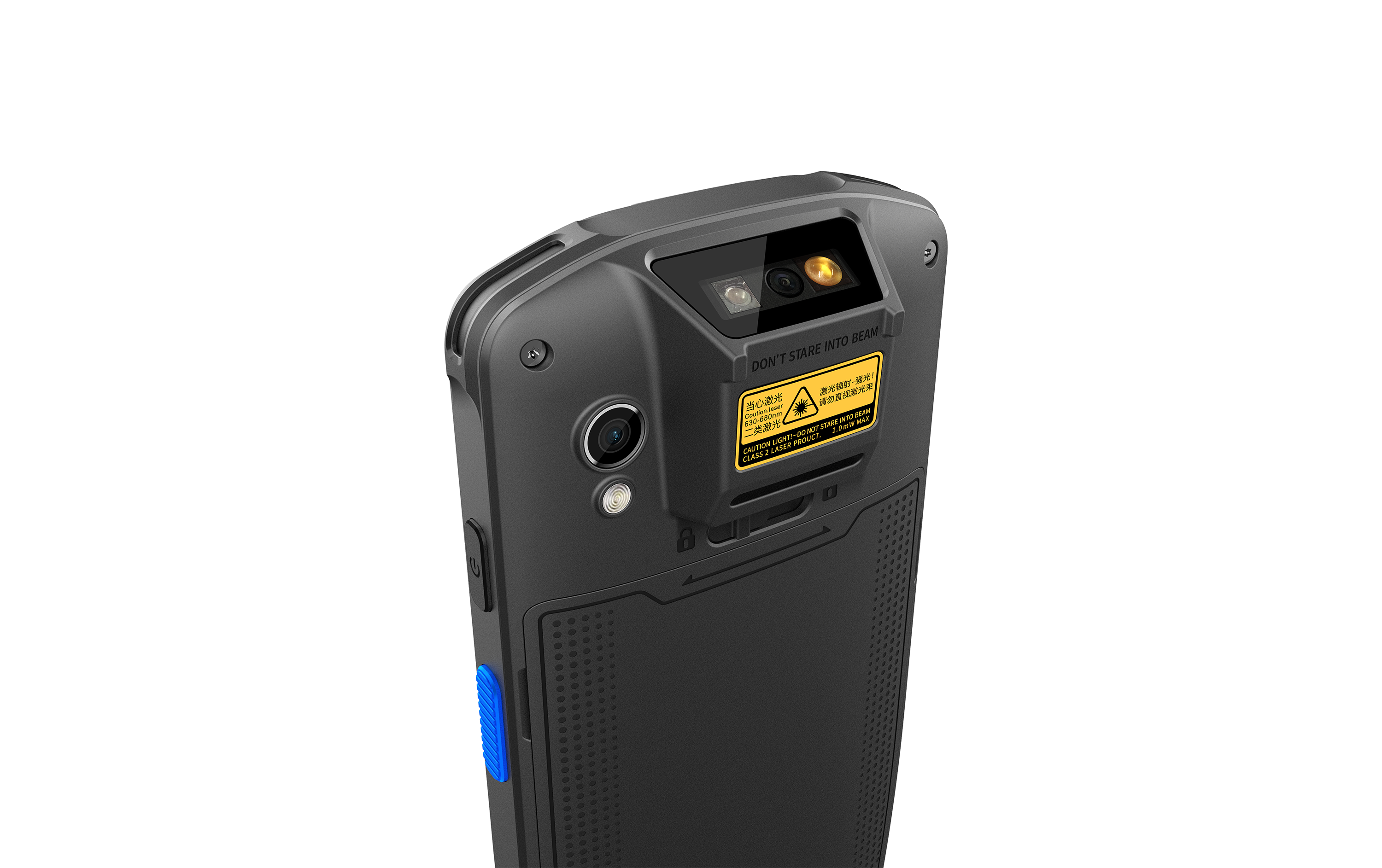

| Camera | 5MP(AF) with flash led rear camera | |
| Mobile Communications | Support 4G-LTE | 3G | 2G GSM:B3/B5/B8;TD-SCDMA：B34/B39; WCDMA：B1/B8FDD LTE:B1/B3; TDD LTE: B38/B39/B40/B41 |
|

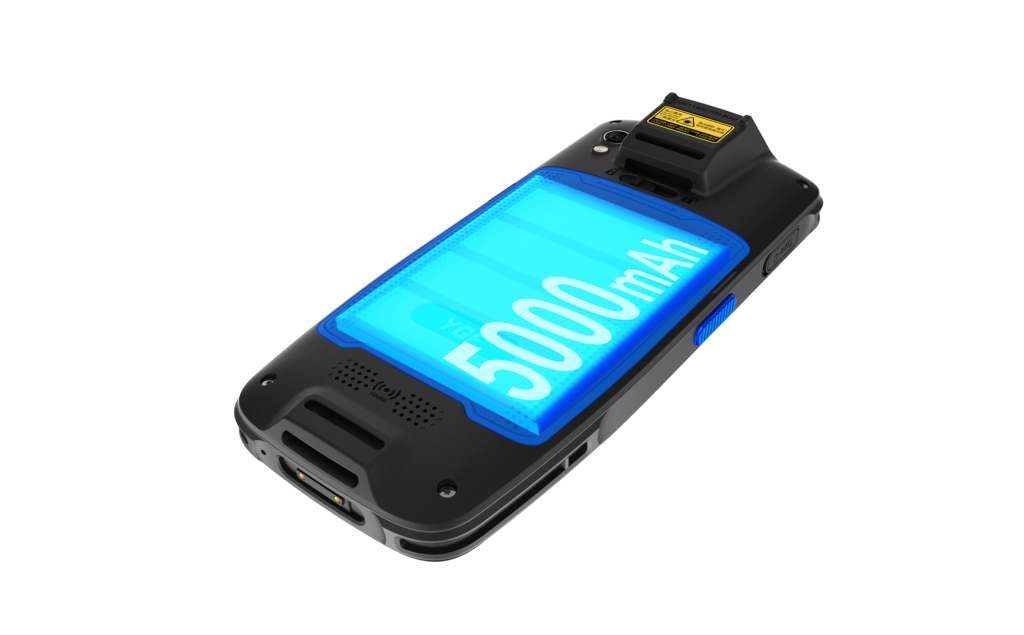

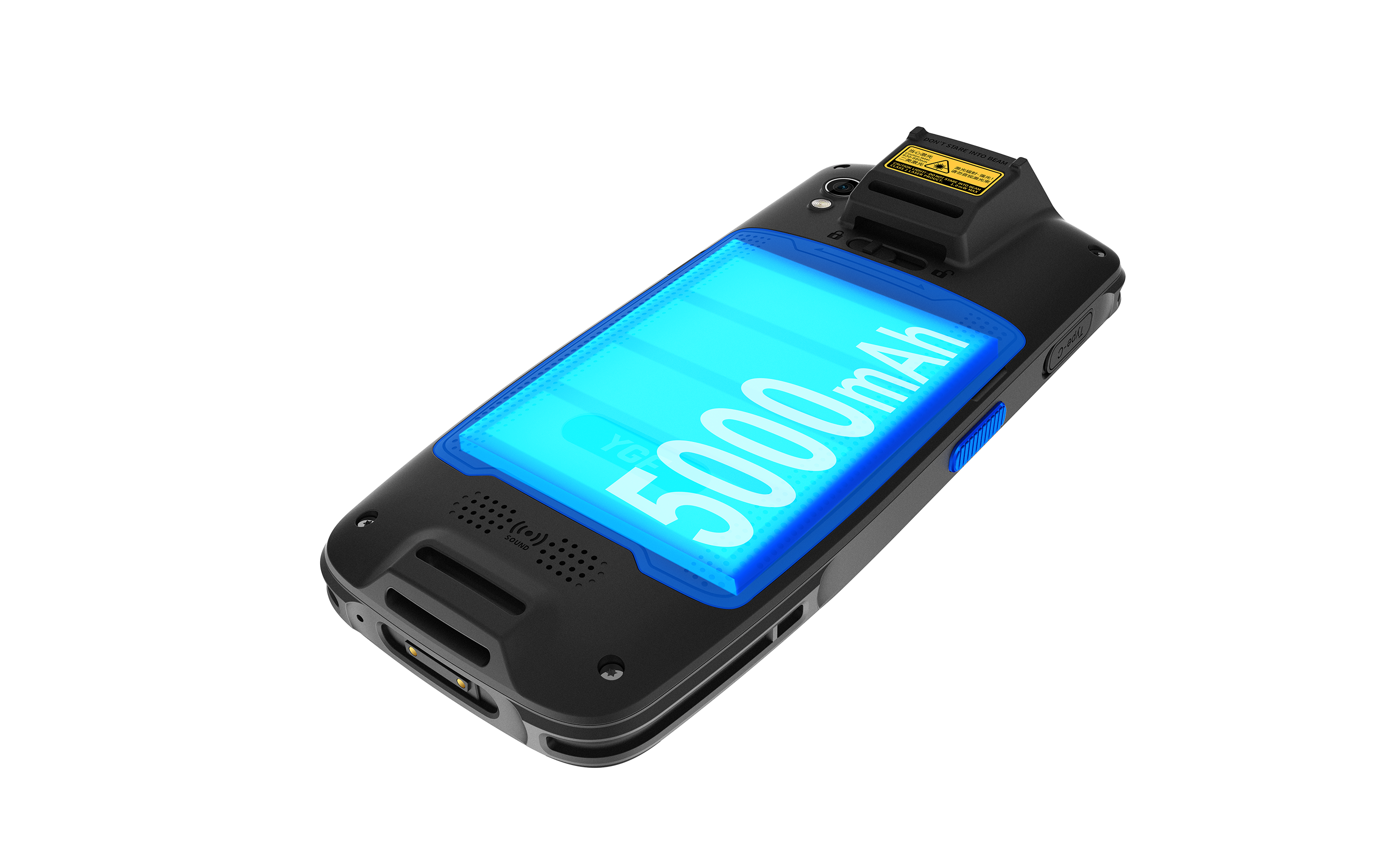

| Battery capacity | 5000mAh rechargeable polymer lithium battery | |
| G-Sensor | Support | |
| Light Sensor | Support | |
| Vibrating alert | Support | |
| Volume | Loud speaker volume, easy to deal with noisy environment | |
| Expansion slot | SIM*1, TF*1 | |
| Interfaces | USB Type-C *1 | |
| Mechanical Spec | Dimension | 159mm(length)*71mm(width)*18mm(thickness) |
| Net Weight | 280g | |
| Package Size | 175mm(length)*100mm(width)*55mm(thickness) | |
| Gross Weight | 500g | |
| Protection Grade | IP67, 6 sides could undertake the impact by falling from 1.5m to the cement ground for may times within the scope of operating temperature | |
| Standard Parts | Charger *1, USB Cable *1 | |

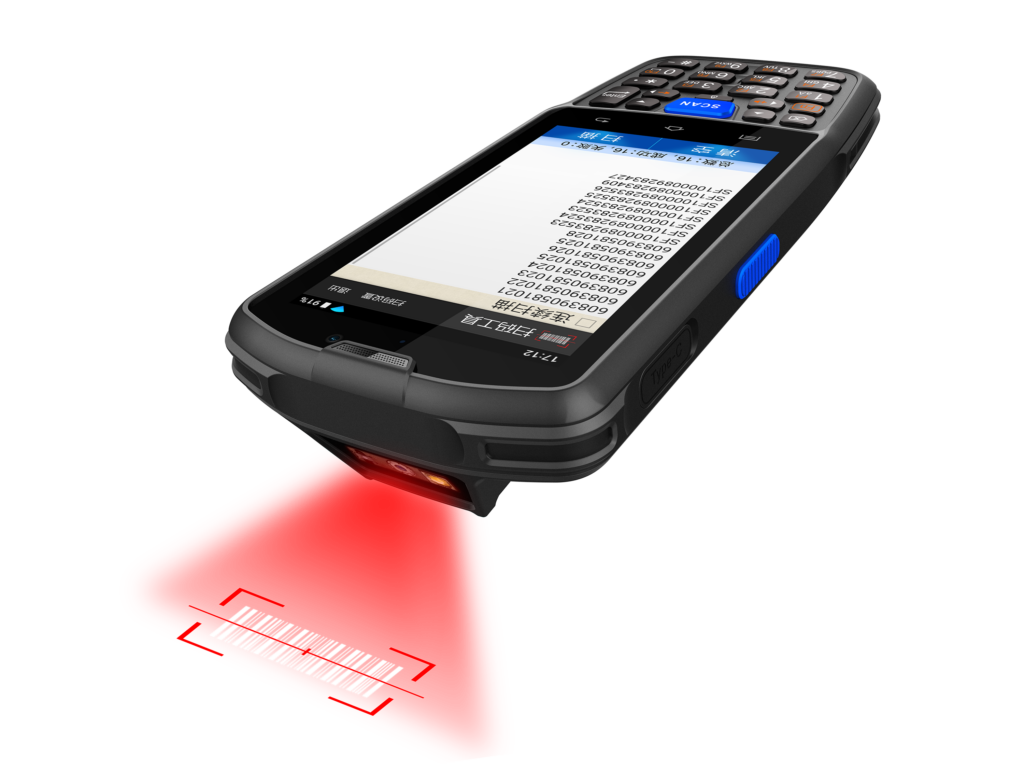

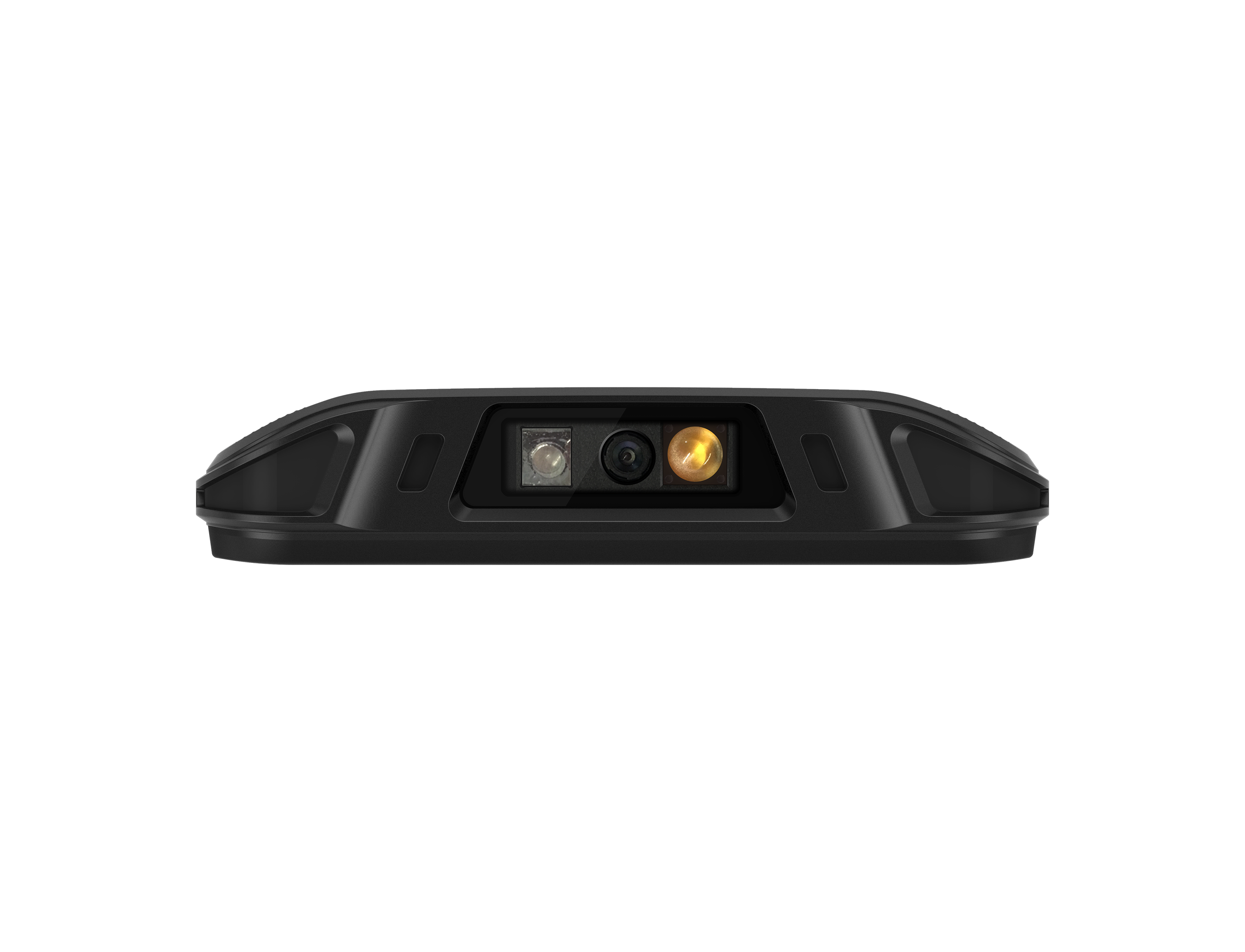

| Optional features | Barcode Reader | Professional 2D Barcode Scan Engine recognizeboth 1D and 2D barcodes1D Barcodes Supported: Code 39, Codabar, Code 128, Discrete 2 of 5,Interleaved 2 of 5, Code 93, UPC-A, UPC-E, EAN-8, EAN-13, MSI, EAN-128, ISBN/ISSN, etc.
2D Barcodes Supported:PDF417, Micro PDF417, QR Code, Micro QR,MaxiCode, Data Matrix, GS1 Composite,Australian Post, British Post, Canadian Post,Japanese Post, etc. |
| NFC | 13.56MHz, ISO14443A/ISO14443B | |
| Charging Dock | Support 1machine and 1battery charging | |

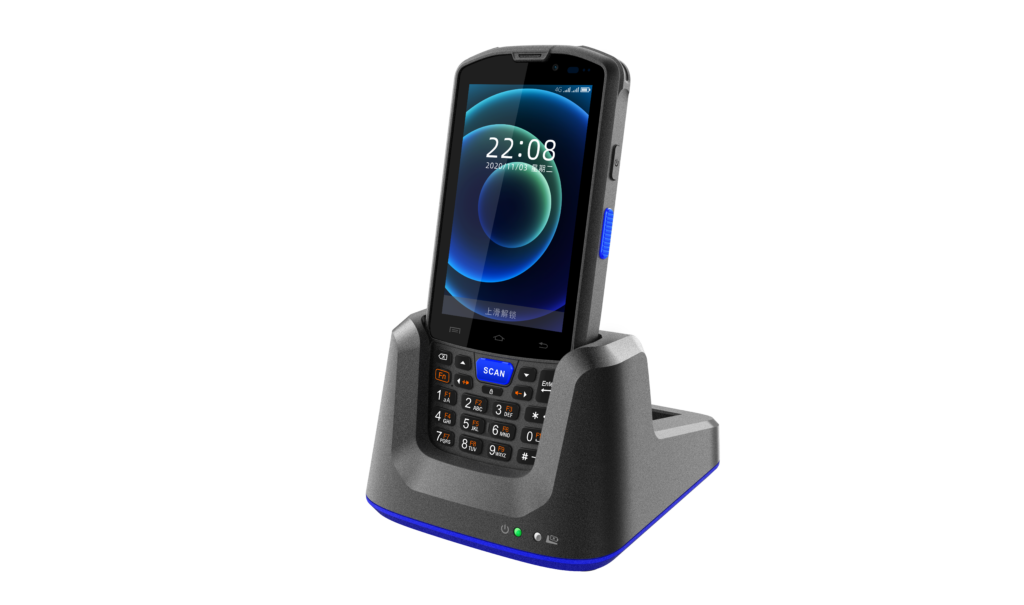

Charging Docks:
Application Scenarios
Warehouse Inventory Management
The handheld PDA helps warehouse workers scan barcodes, check stock levels, update inventory data, and reduce manual input errors. It is suitable for goods receiving, stock counting, order picking, packing, and warehouse transfer operations.
Retail Store Stock Control
Retailers can use this Android PDA for product barcode scanning, price checking, shelf management, stock replenishment, and mobile inventory updates. It is useful for supermarkets, convenience stores, fashion stores, pharmacies, and chain retail businesses.
Logistics and Express Delivery
For logistics companies, the device can support parcel scanning, delivery confirmation, route tracking, goods sorting, and shipment status updates. With 4G, WiFi, GPS, and barcode scanning, it helps improve delivery efficiency and data accuracy.
Manufacturing and Factory Management
Factories can use the handheld terminal for material tracking, production line data collection, quality inspection, equipment management, and finished goods warehouse control.
Asset Management and Field Service
The PDA can help companies scan asset labels, verify equipment information, record maintenance data, and manage field inspection tasks. With NFC and GPS support, it is also suitable for patrol management and outdoor service applications.
Why Choose This Android Handheld PDA?
This 4-inch Android handheld PDA is designed for businesses that need a compact, durable, and easy-to-use barcode scanning device. It combines touch screen operation, physical keypad input, professional 2D barcode scanning, NFC, 4G connectivity, and rugged protection in one device.
For system integrators, software providers, distributors, and project partners, it can be used as a reliable hardware terminal for warehouse management, retail stock control, logistics tracking, asset management, and industrial data collection projects.
SOMAN POS can support OEM and ODM requirements based on your project needs, including branding, configuration selection, accessory options, and bulk order support.
FAQs
What is an Android handheld PDA barcode scanner?
An Android handheld PDA barcode scanner is a portable data collection device that combines Android system, barcode scanner, touch screen, keypad, wireless communication, and business application support. It is widely used in warehouses, retail stores, logistics, manufacturing, and asset management.
Is this PDA suitable for warehouse inventory?
Yes. This device is suitable for warehouse inventory, stock taking, goods receiving, order picking, packing, and barcode-based warehouse management. Its 2D scan engine, physical keypad, 4G/WiFi connection, and rugged housing make it practical for daily warehouse use.
Does this handheld PDA support 2D QR code scanning?
Yes. It supports both 1D and 2D barcode scanning, including QR Code, Micro QR, PDF417, Data Matrix, MaxiCode, GS1 Composite, and other common barcode formats.
Can this device work with Android warehouse or retail software?
Yes. The device supports Android system options, including Android 9.0, Android 13, and Android 14 GMS. It can work with many Android-based warehouse, retail, logistics, and inventory applications. For customized software integration, your software team can test compatibility based on the target application.
Does it support NFC?
Yes. The device supports 13.56MHz NFC and ISO14443A / ISO14443B standards. It can be used for NFC card reading, membership verification, asset identification, and other related applications.
Is the device waterproof and dustproof?
Yes. The PDA has an IP67 protection grade, which provides strong dust and water resistance for harsh working environments.
What industries can use this handheld PDA?
It is suitable for retail, supermarkets, warehouses, logistics, manufacturing, asset management, field service, ticket checking, and other barcode or mobile data collection applications.
