Android Rugged Tablet 8inch with 4G LTE, NFC, Barcode Scanner and RFID
Product Introduction
- MTK6765 64-bit octa-core processor, 12nm process, maximum frequency up to 2.3GHz
- Android 10.0 / Android 11.0 system with GMS certification
- 8-inch IPS display, optional 800 × 1280 / 1200 × 1920 resolution
- 8000mAh rechargeable polymer battery, supports DC or Type-C charging, with charging indicator
- Front 5MP camera and rear 13MP camera, autofocus, cold and warm dual flashlight
- COF touch screen, using Goodix GT9110 touch IC, optional Corning glass
Description
Brief Description
This 8 inch IP65 Android Rugged Tablet is designed for warehouse management, logistics tracking, field service, asset management, retail operation, industrial inspection, and mobile data collection.
It helps workers scan codes, read cards, check data, take photos, upload records, and manage daily business tasks more efficiently.
In addition, this rugged tablet is powered by an MTK6765 64-bit octa-core processor, Android 10.0/11.0 with GMS, 4GB RAM, 64GB storage, 4G LTE, dual-band WiFi, Bluetooth, GPS, and an 8000mAh battery.
Moreover, it supports optional NFC, 2D barcode scanner, ID card module, fingerprint reader, RFID, and LoRa IoT module. Therefore, it is suitable for warehouse, logistics, inspection, identity verification, and industrial project requirements.
8-inch Android Rugged Tablet Specification
| 1.Parameters | |||||||||
| Type | Project | Description | |||||||
| Configuration | CPU | MTK6765 64-bit 8-core 12nm process Arm Cortex-A53 operating system, the frequency is 2.0GHz | |||||||
| Memory | 4GB | ||||||||
| EMMC | 64G | ||||||||
| Storage Extend | 4GB-128GB SD/TF Support | ||||||||
| WiFi | 802.11a/b/g/n/ac | ||||||||
| camera | Front 500MP | ||||||||
| Rear 13 million, auto focus, dual flashes with cold and warm light | |||||||||
| 3G | WCDMA-IMT-2000/WCDMA-PCS-1900/WADMA-CLR-850/WCDMA-GSM-900 | ||||||||
| 4G | B1/B3/B5/B7/B8/B20/B34/B38/B39/B40/B41 | ||||||||
| OS | Google Android 10.0 | ||||||||
| Display | Screen | 8″ IPS FHD 1200*1920（800*1280） | |||||||
| TP | G+G | ||||||||
| Language | English,French,German,Italian,Japanese,Korean ,Russian, Spanish,Polish ,Czech,Chinese ect. | ||||||||
| Others | G-SENSER | support | |||||||
| GPS | support GPS、GLONASS Galileo Beidou | ||||||||
| FPI | support 256*288pixel 500DPI | ||||||||
| Iris recognition | support SFH4780S LED 2200mw@1A @810nm | ||||||||
| ISO14443TypeB | |||||||||
| 2D Bar Code | support 640*480 CMOS LED 625nm PDF417 QR Code(QR1/2,Mirco),Data Matrix(ECC200,ECC000,050,080,100,140) | ||||||||
| NFC | support NXP 547 13.56MHz ISO/IEC 14443A/MIFARE/Jewel/Topaz tags/FeliCa cards/ISO/IEC 14443B/ ISO/IEC15693/ICODE | ||||||||
| BT | support BT4.0 | ||||||||
| RFID | support 125Khz 915Mhz 13.56Mhz | ||||||||
| FM | support | ||||||||
| Battery | 3.8V/8000mAh | ||||||||
| Working Time | about 10 hours | ||||||||
| BAND | |||||||||
| Power Device | AC Adapter Input 100/240V Output 5V 2A | ||||||||
| Device | Color | white/black | |||||||
| Size | 240*155*18mm (Q819) 278*175*22mm(Q818) | ||||||||
| Weight | 650g 880g | ||||||||
| 2.Software | |||||||||
| Software | Office | Support MS Office Word, PPT, Excel | |||||||
| Gaming | Built-in 3D Accelerator. Support 3D gaming | ||||||||
| Gmail, POP3/SMTP/IMAP4 | |||||||||
| Others | QQ, Video Player, Google Map, Play Store | ||||||||
| Multi-Media | |||||||||
| Entertainment | Video | AVI, MP4, FLV, 3GP, MKV, WMV etc. | |||||||
| Audio | MP3, WMA, OGG, AAC, WAV FLAC etc. | ||||||||
| Picture | JPG/BMP/PNG/GIF | ||||||||
| E-Book | PDF, TXT etc. | ||||||||
| Interface | 2 special USB | 1 host 2 device | |||||||
| 2 x SIM Card Slot | |||||||||
| 1 x TF Card Slot | |||||||||
| 1 x Earphone Jack | |||||||||
| Package | 1 x Tablet PC | ||||||||
| 1 x Charger | |||||||||
| 1 x User’s Manual | |||||||||
| 1 x Micro USB cable | |||||||||
| 1 x Earphone | |||||||||

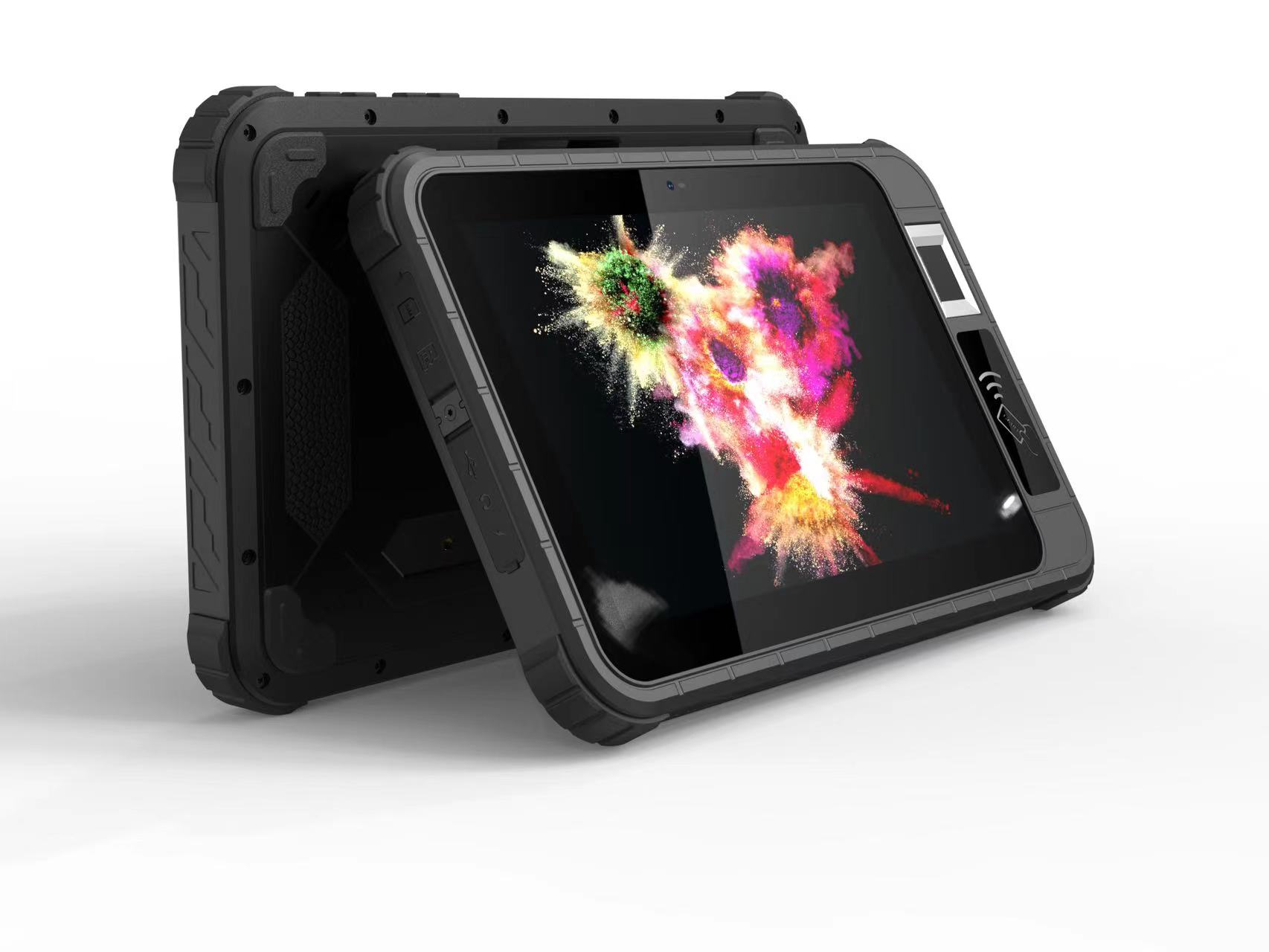

Product Internal Introduction
The internal structure includes three main optional modules:
- Fingerprint module
- 2D scanner
- ID card module
These modules make the tablet suitable for identity verification, barcode data collection, and project-based business applications.
In addition, the internal layout helps customers understand how the optional functions are integrated into the rugged tablet.
Product Wireframe
The product wireframe shows the rear housing structure and product dimensions.
Main rear body size shown in the diagram:
- Length: 236.600mm
- Width: 151.000mm
The rear structure uses a rugged housing design. Therefore, it is suitable for industrial and mobile working environments.
Meanwhile, the wireframe helps customers check the device structure before project evaluation.

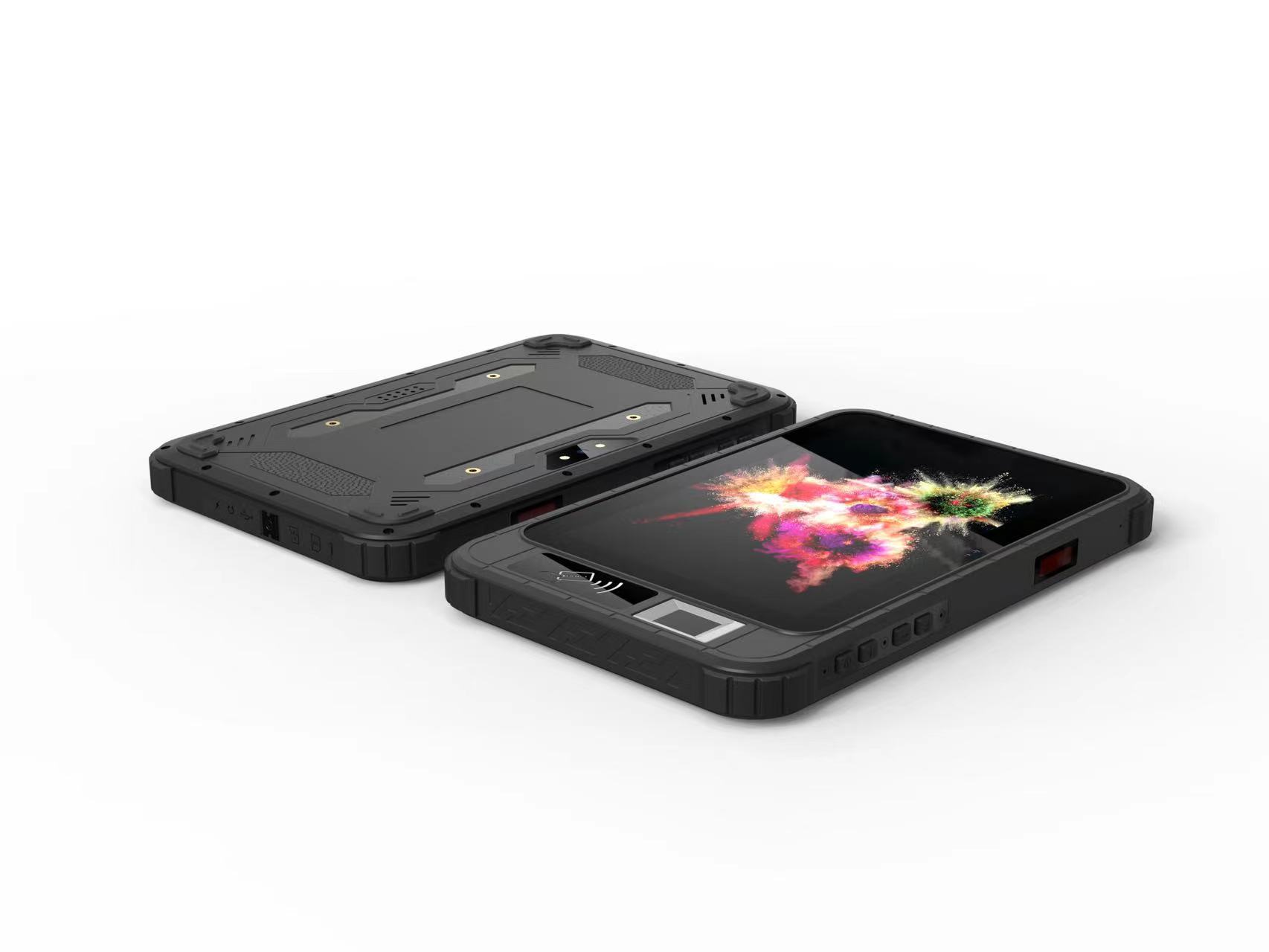

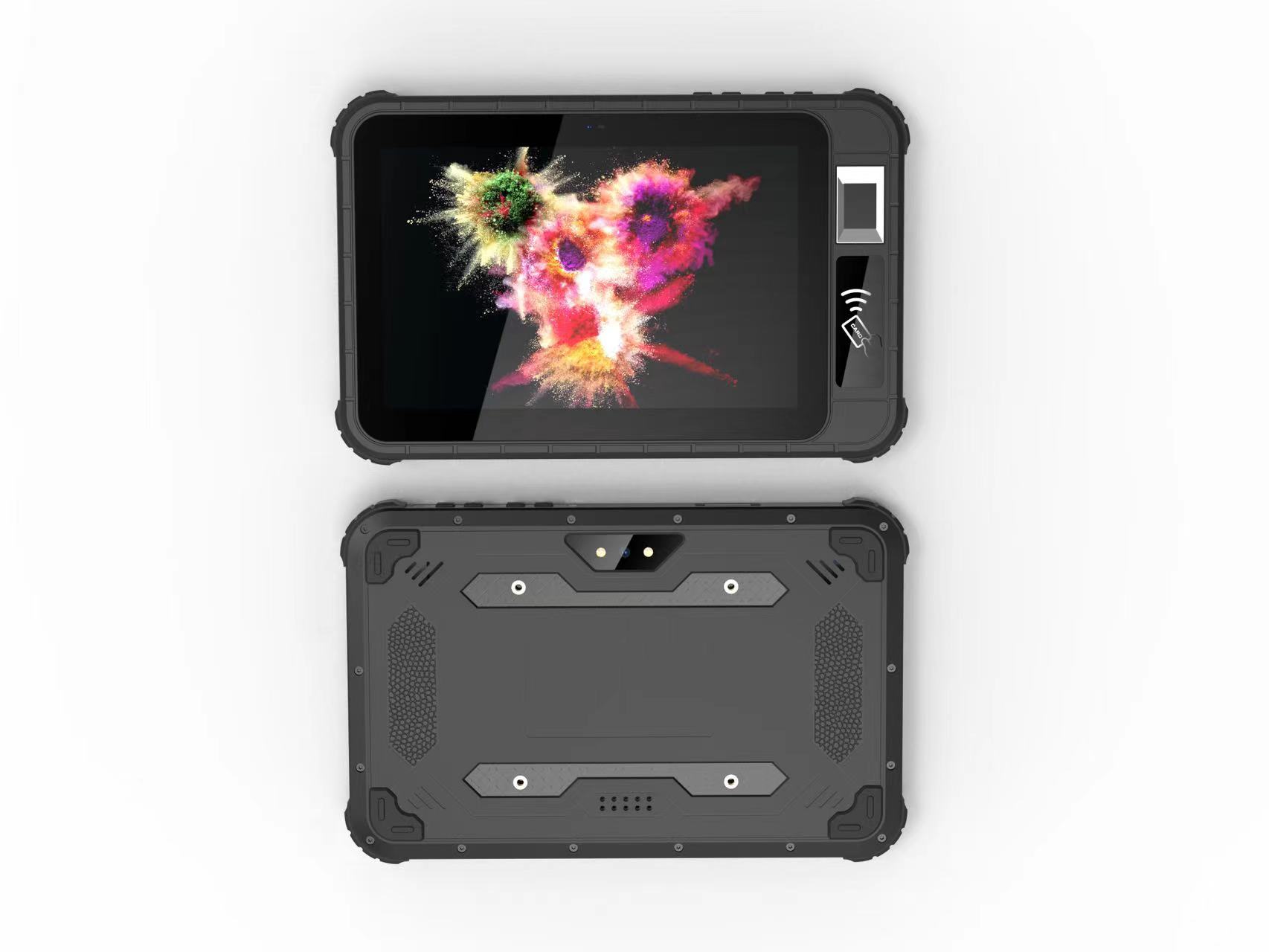

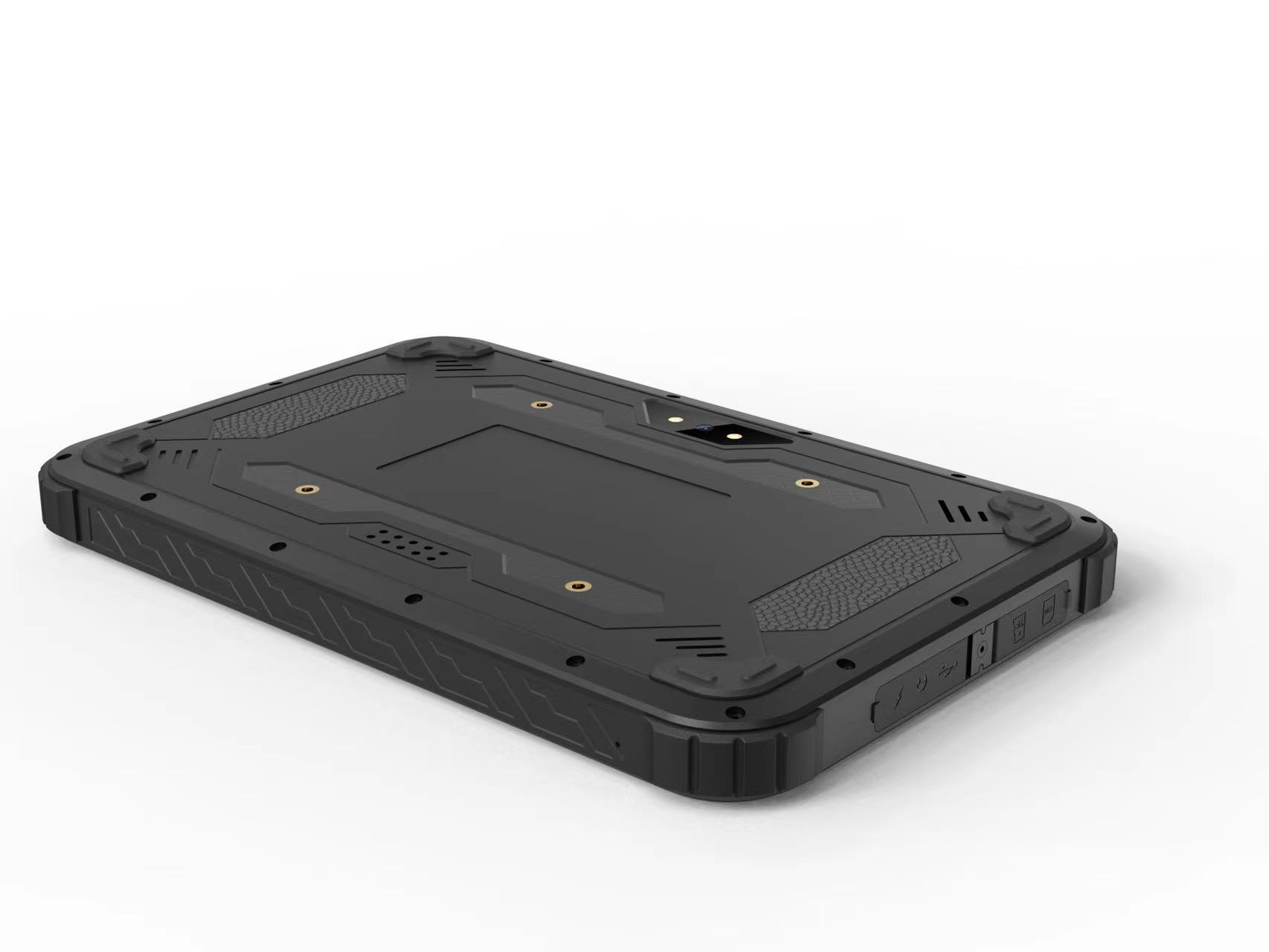

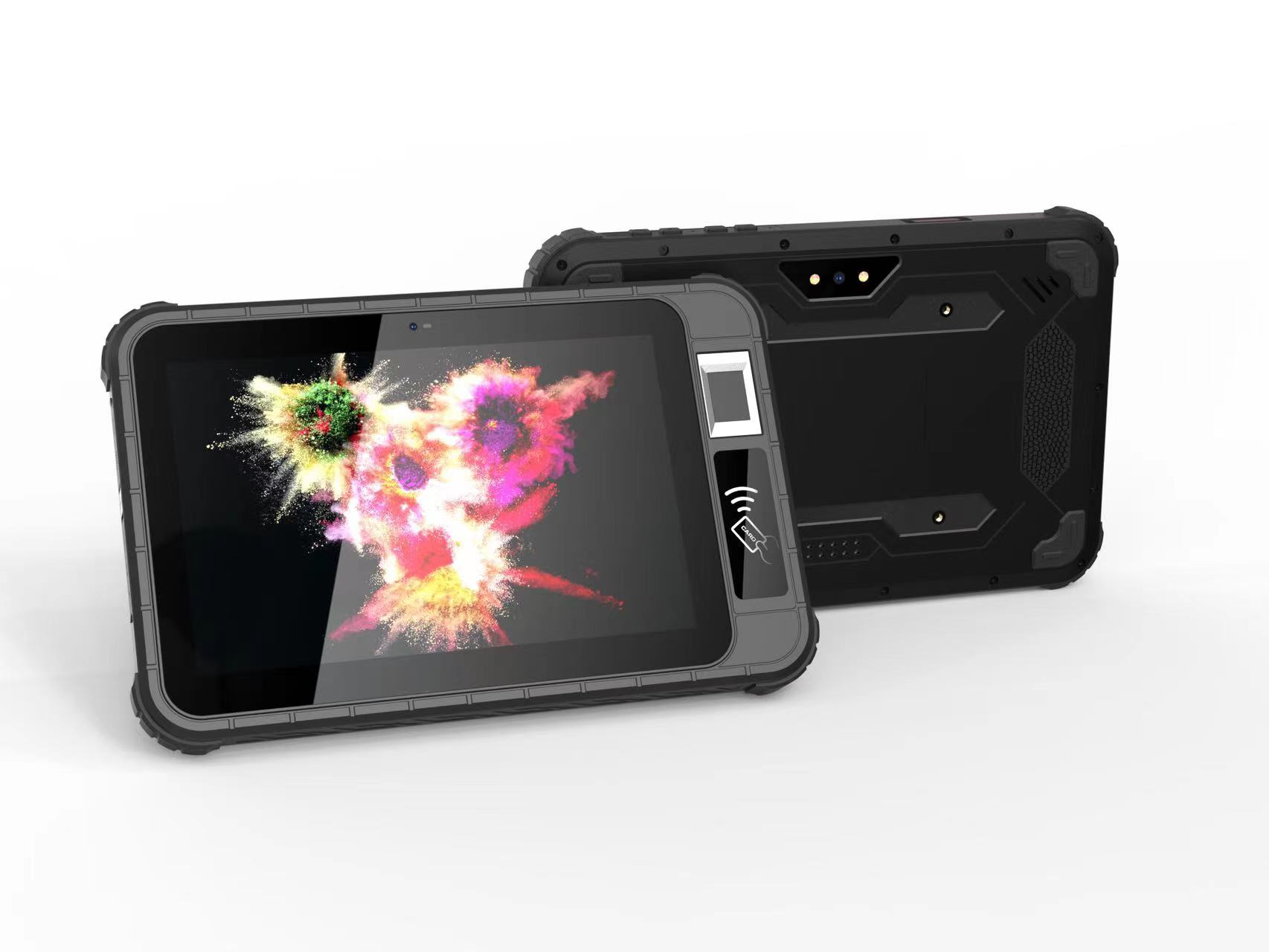

Product Rendering Display

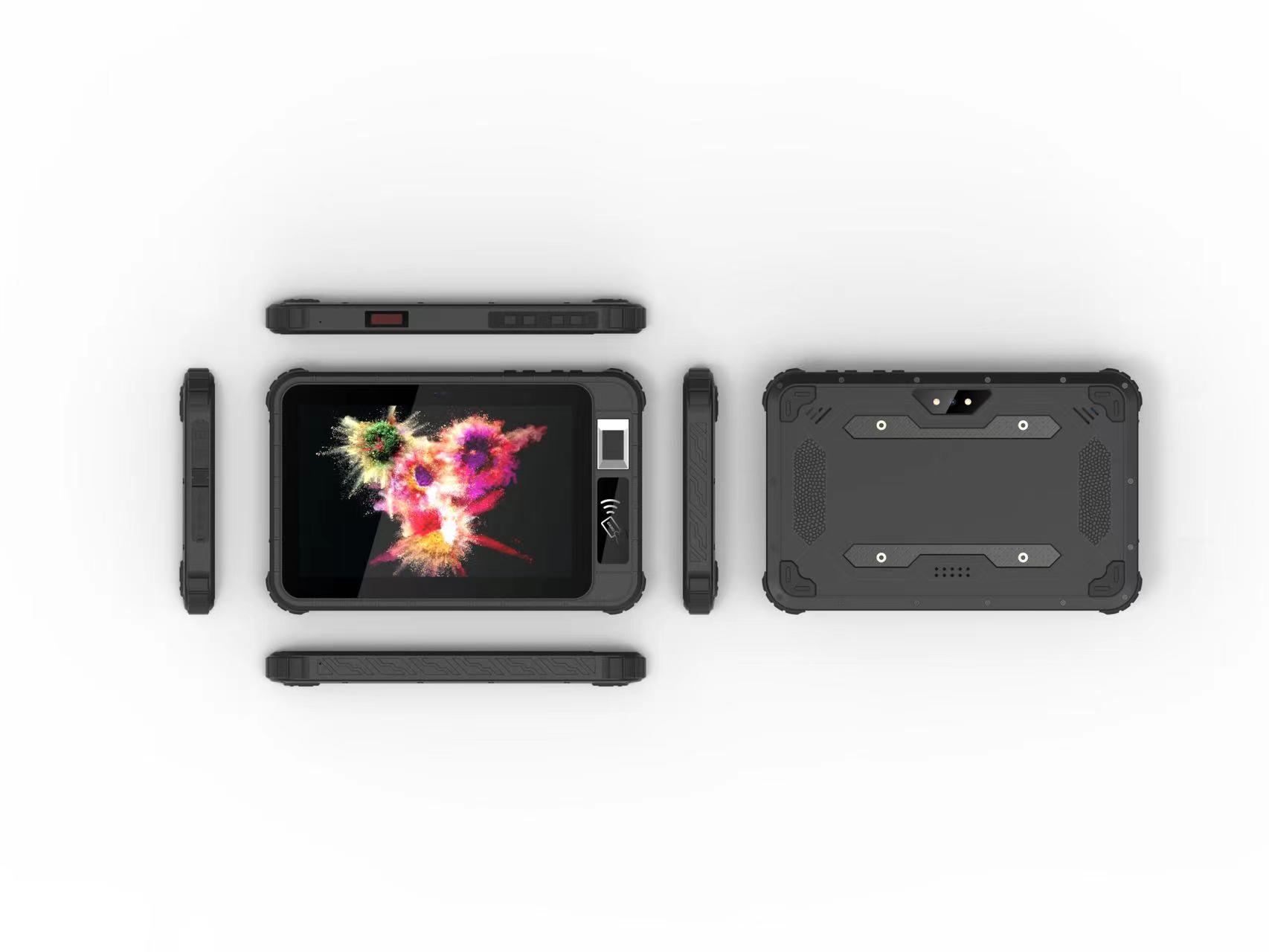

The product rendering shows the Q819 rugged tablet from different angles. It includes the front view, side view, back view, and overall appearance.
The product design includes:
- Rugged protective housing
- 8 inch front touch display
- Rear camera area
- NFC / card reading area
- Side interface design
- Reinforced corner protection
- Industrial-style rear structure
As a result, customers can better understand the product structure, appearance, and rugged design before project evaluation.
FAQs
What is this 8 inch Android rugged tablet used for?
Businesses can use it for warehouse management, logistics tracking, field service, retail operation, manufacturing, inspection, asset management, identity verification, and mobile data collection.
Is this tablet suitable for warehouse and logistics applications?
Yes. The 8 inch screen, 4G LTE, dual-band WiFi, GPS, optional barcode scanner, optional RFID, and IP65 protection make it suitable for warehouse and logistics projects.
Can this Android rugged tablet support barcode scanning?
Yes. The Q819 can support a rear-mounted 2D barcode scanner. Scanner module options include Newland, Honeywell, and Zebra modules.
Does it support NFC?
Yes. NFC is optional. It supports 13.56MHz, ISO/IEC 14443 Type A/B, and ISO/IEC 15693.
Can it support RFID?
Yes. The tablet can support optional 125K / 134.2K low-frequency RFID and 840–960MHz UHF RFID. The UHF reading distance can reach about 1–3 meters.
Does it support fingerprint recognition?
Yes. The Q819 can support an optional FAP10 capacitive fingerprint module.
Can it read ID cards?
Yes. The tablet can support an offline ID card module. A network ID card module is also optional.
Can it be used outdoors?
Yes. The Q819 supports IP65 protection, 4G LTE, GPS positioning, and an 8000mAh battery. Therefore, it is suitable for field service, inspection, logistics, and outdoor mobile data collection.
Can we pre-install our business software?
Yes. We can pre-install business software before shipment if you provide the APK and installation requirements. However, your software team should test final compatibility based on the actual software environment.
Can it support OEM or ODM projects?
Yes. OEM/ODM requirements can be discussed based on project quantity, logo needs, software setup, accessories, and hardware configuration.
Please contact us for more product details.
